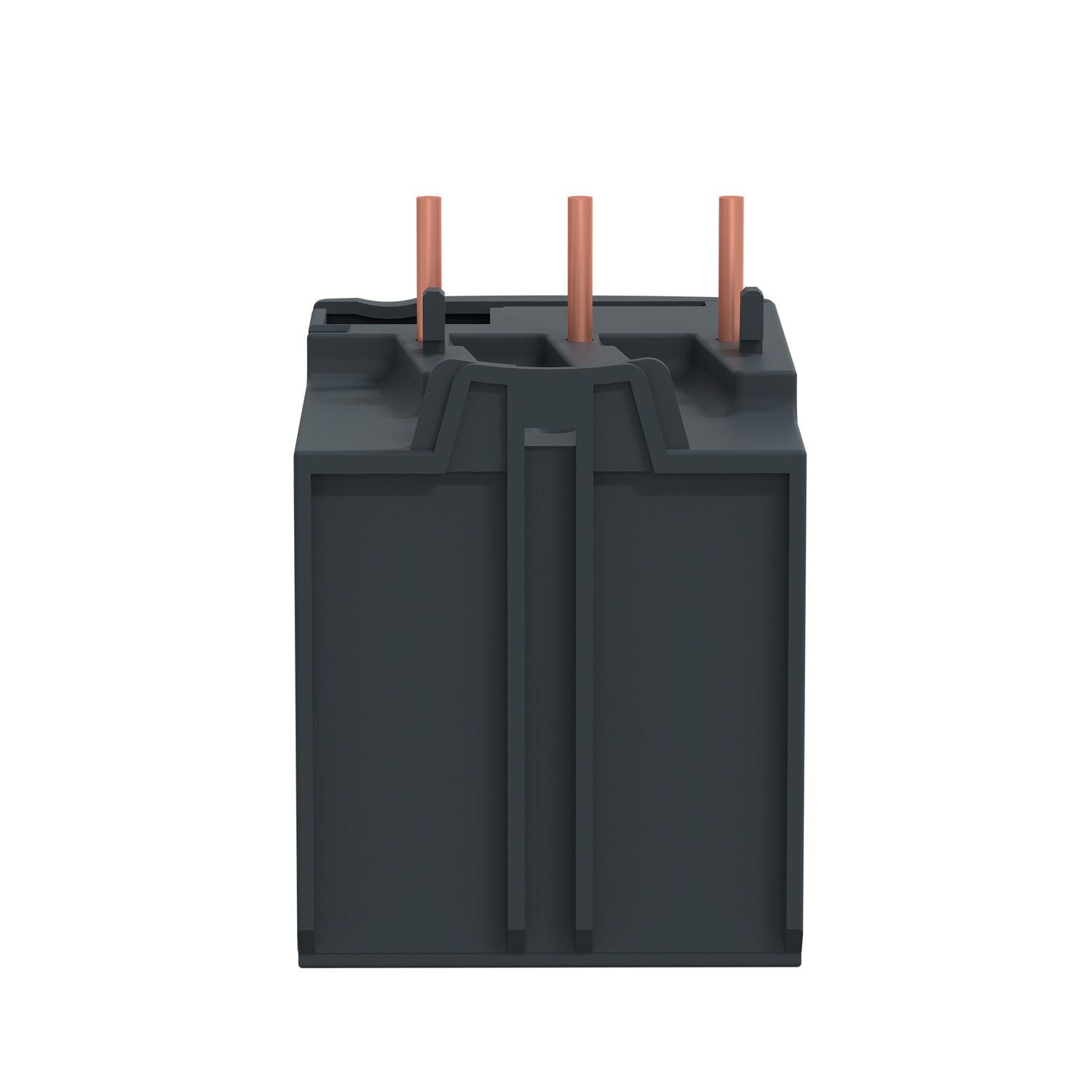

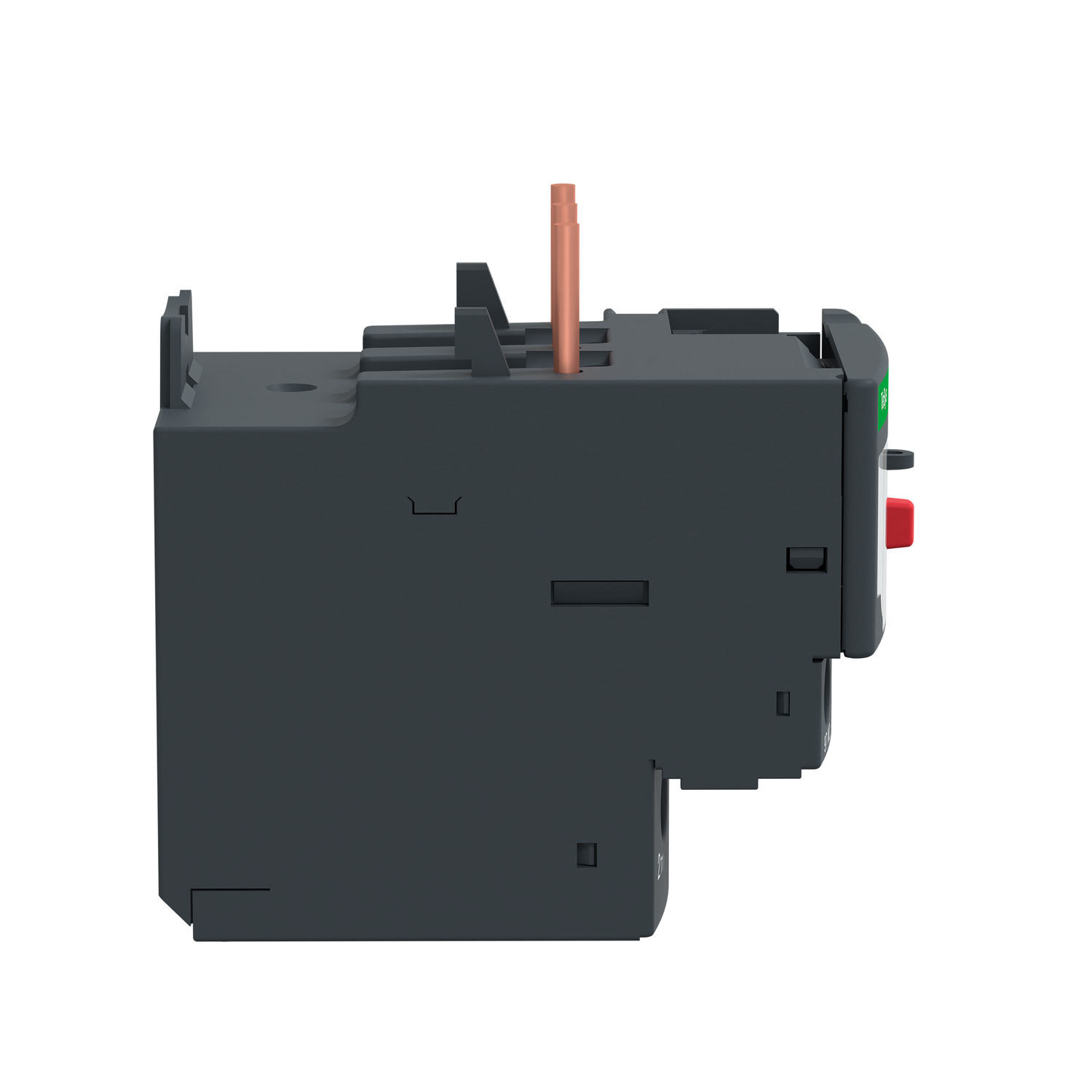

LRD01C-LRD35C Schneider TeSys Miniature Switch Differential Thermal Overload Relay 9-38A High Power Protective 1NO+1NC Stock

Detail

Contact Form

1NO+1NC

Contact Load

High Power

Max. switching current

38A

Rated Current

5 A

Selling Units

Single item

Model Number

LRD01C-LRD14C

Brand Name

S-chneider

Contact Material

Copper

Power Source

AC/DC

Size

Subminiature, Miniature

Terminal Shape

Screw Terminal

Theory

Thermal Relay

application

Motor protection

Control type

Red push-button stop Blue push-button reset

[Uimp] rated impulse withstand voltage

6 kV

Permissible current

3 A 120 V AC-15 0.22 A 125 V DC-13

[Ue] rated operational voltage

690 V AC 0...400 Hz power circuit IEC 60947-4-1

Associated fuse rating

4 A gG for signalling circuit 4 A BS for signalling circuit
